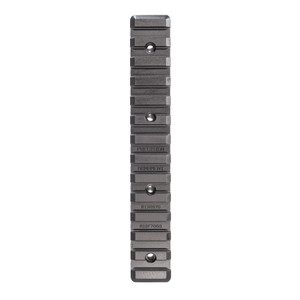

Remington 700 Tennalum® 7068 Scope Rail

(No reviews yet)
Current Stock:
Adding to cart… The item has been added


All Precision Armament Scope Rails are fully machined from a billet of ultra-strength Tennalum® 7068, offering the strength of steel at a third of the weight.  Billets are stress relieved and pre-ground prior to machining to deliver exceptional straightness.  Manufactured to MIL-STD 1913 dimensions with all critical contact surfaces held uniform to within 0.0003".  Fully CNC chamfered along every edge for smooth, snag free handling.  Features an integral recoil lug combined with elongated mounting holes for positive lug engagement and elimination of movement under heavy recoil.  Unique cross section geometry is fully FEA optimized for maximum stiffness-to-weight ratio while also providing improved ejection port access.  All bases have built in 20-MOA of elevation for extended range shooting.  Mil-A-8625 hardcoat anodized matte black finish. Installation guide and hardware included.

Factory Screw Pattern: Mounts directly onto standard/factory Remington-700 receivers, includes four 6-48 torx screws.

Improved Screw Pattern:  Designed for heavy duty applications (gunsmithing required). Requires drilling and tapping of existing receiver holes to 8-40 threads, includes two additional holes for optional six screw configurations.  Includes six 8-40 torx screws.

Requires a T10 torx wrench for scope rail installation.


  Short Action Long Action
Length: 6.450" 6.885"
No. of Slots: 15 16
Weight: 2.3 oz 2.4 oz
MOA: 20 20
Full Spec Sheet: View PDF
Installation Manual: View PDF


Fits standard Remington 700 pattern receivers.


Factory Screw Pattern.



For thread specifications, general information, and more - visit our Technical Resources page:




Remington 700
