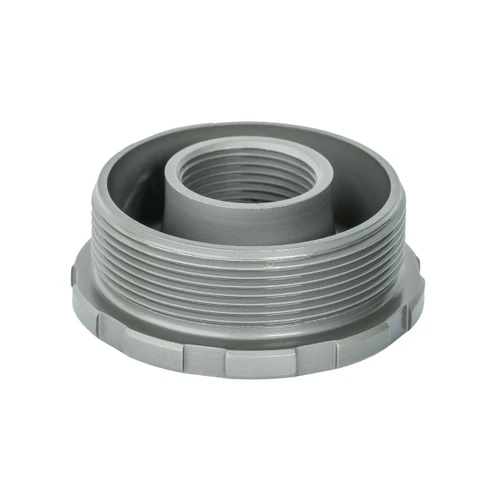

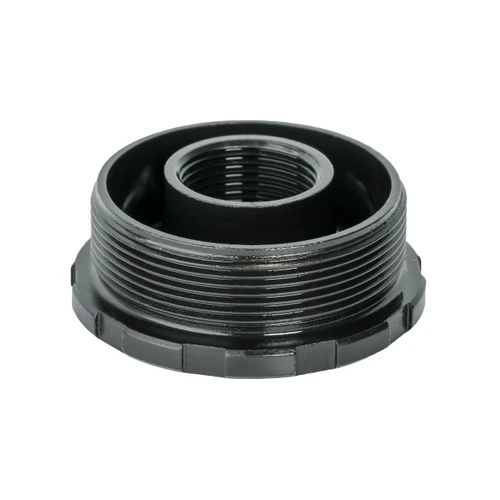

OPEN SOURCE® Certified Precision™ Direct Thread Suppressor Mount
$89.95
DESCRIPTION
A premium grade, universal HUB / 1.375 X 24 suppressor mount, for demanding applications where Precision, Durability, and Light-Weight are paramount.
Key Features
- Universal Compatibility with all 1-3/8 X 24 & HUB interface suppressors
- Certified Alignment Tolerances up to 5x better than industry standards
- Enhanced Precision Class 3+™ threads
- FEA Optimized for light weight high strength performance
- Industry standard spanner wrench interface
SPECS
| Interface (Suppressor Side): | HUB, UN 1.375x24 Class 3+™ | |
| Interface (Gun Side): | UN Class 3+™ | |
| Certified Delta Perpendicularity: | =<0.0001in | |
| Certified Delta Runout: | =<0.0003in | |
| Material: | 17-4 Stainless Steel | |
| Weight: | 1.9oz | |
| Diameter: | 1.56in | |
| Finish: | Matte Stainless, Black Nitride | |
| Full Spec Sheet: | View PDF | |
Related Products
-
-
-
-

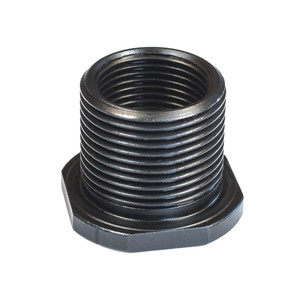

M4 Muzzle Thread Adapter
$22.99 - $29.99
Reviews
-
concentricity
Purchased this as a last effort to improve concentricity of a suppressor/bore combination and it worked perfectly in conjunction with the accu-washer system. Obviously accu-washers not required for use with this direct thread mount but I wanted to remove the barrel shoulder as a variable. Between the two, I have perfect concentricity (based on standard visual check with alignment rod) with a supressor/bore that were marginally passing visual concentricity check with multiple other systems including one direct thread option and one QD system.
